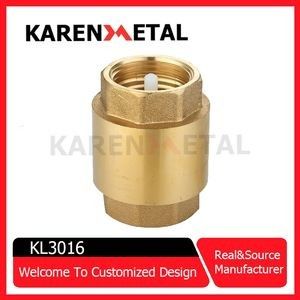

Brass Spring Check Valve with Water Vertical Core One Way Non Return

Products

Brass Spring Check Valve with Water Vertical Core One Way Non Return

Details Information

Product Description

Detail Information

Product Description

Normal pressure	1.6MPa
Working medium	Water,Gas,Oil
Working temperature	-20ºC≤T≤150ºC
Thread standard	ISO228

Brass Spring Check Valve with Water Vertical Core One Way Non Return 0

NO	Component	Material
1	Body	Brass
2	Spring	304S.S
3	Pin	ABS Plastic
4	Washer	NBR
5	Bonnet	Brass

Brass Spring Check Valve with Water Vertical Core One Way Non Return 1

Our experience range from simple design to challenging technical parts.

We have extensive experience in manufacturing products using these materials and know how to adjust parameters to get perfect products.

Customized desgin is welcome!

Main extermal and connection dimension

G	DN	L
1/2"	15	48
3/4"	20	56
1"	25	58.5
1-1/4"	32	63
1-1/2"	40	65
2"	50	73.5
2-1/2"	65	91
3"	80	102
4"	100	111

Brass Spring Check Valve with Water Vertical Core One Way Non Return 2

Brass Spring Check Valve with Water Vertical Core One Way Non Return 3

Brass Spring Check Valve with Water Vertical Core One Way Non Return 4

Brass Spring Check Valve with Water Vertical Core One Way Non Return 5

Brass Spring Check Valve with Water Vertical Core One Way Non Return 6

Brass Spring Check Valve with Water Vertical Core One Way Non Return 7

Brass Spring Check Valve with Water Vertical Core One Way Non Return 8

Brass Spring Check Valve with Water Vertical Core One Way Non Return 9

Q:Where is your company or factory?
  A: We are located in Yueqing county zhejiang province, We have our own factory.

Q:Can you make design?
  A: We'll be glad to design molds for you.

Q:What's the delivery method?
A: We can arrange for the product to be shipped by air,by sea, by courier, etc by customer request.

Q:What's the delivery time?
A: Generally, the lead time is 18-25 days for new orders and 15-20days for repeated orders from the confirmation date.

Q:What type of mould you can make?
A: We can produce various plastic injection molds with rich experience.We have extensive experience in manufacturing products using these materials and know how to adjust parameters to get perfect products.

Q:How about your capacity?
A:Our company has 40 CNC lathes, which are used for precision machining of all products to guarantee the accuracy of the final dimensions. Each product is subject to inspection by our highly trained personnel, ensuring that only the highest quality is delivered to our customers.
