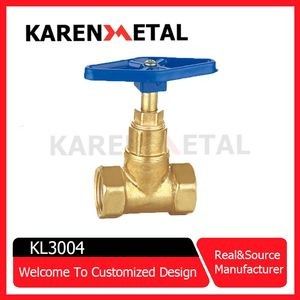

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off

Products

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off

Details Information

Product Description

Detail Information

Product Description

Normal pressure	1.6MPA
Working medium	Water,Gas,Oil
Working temperature	-20ºC≤T≤150ºC
Thread standard	ISO228

Main components material

NO	Component	Material
1	Body	Brass
2	Wedge Disc	Brass
3	Stem	Brass
4	Bonnet	Brass
5	Packing Rings	PTFE
6	Gland Nut	Brass
7	Handle Wheel	Cast Iron
8	Nameplate	Aluminium
9	Nut	Brass

Main extermal and connection dimension

G	DN	L	d	H	D
1/2"	15	46	11	62	53
3/4"	20	53	15	67	58
1"	25	63	19	82	71
1-1/4"	32	70	24	93	78
1-1/2"	40	74.5	28	103.5	97
2"	50	94.5	31	120.5	107

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off 0

Our experience range from simple design to challenging technical parts.

We have extensive experience in manufacturing products using these materials and know how to adjust parameters to get perfect products.

Customized desgin is welcom

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off 1

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off 2

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off 3

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off 4

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off 5

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off 6

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off 7

High-Quality Brass Stop Valve for Efficient Bathroom Shut-off 8

Q:Where is your company or factory?
  A: We are located in Yueqing county zhejiang province, We have our own factory.

Q:Can you make design?
  A: We'll be glad to design molds for you.

Q:What's the delivery method?
A: We can arrange for the product to be shipped by air,by sea, by courier, etc by customer request.

Q:What's the delivery time?
A: Generally, the lead time is 18-25 days for new orders and 15-20days for repeated orders from the confirmation date.

Q:What type of mould you can make?
A: We can produce various plastic injection molds with rich experience.We have extensive experience in manufacturing products using these materials and know how to adjust parameters to get perfect products.

Q:How about your capacity?
A:Our company has 40 CNC lathes, which are used for precision machining of all products to guarantee the accuracy of the final dimensions. Each product is subject to inspection by our highly trained personnel, ensuring that only the highest quality is delivered to our customers.
